Power Valves
3 Port 3 Position Valve VEX3
 | ・The intermediate stopping of cylinders up to ø125 is possible. ・Power consumption: 1 W ・4 Manual override options: Non-locking push type Locking slotted type Push-turn locking slotted type Push-turn locking lever type |
| Description | Model | Function |
|---|---|---|
| 3 port 3 position valve | VEX3 | Directional control valve |

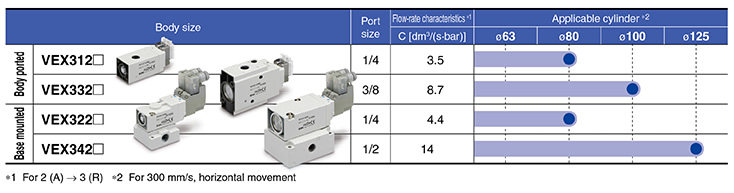

■Intermediate stopping of cylinders up to ø125 is possible
* For VEX332 □ , VEX342 □ , 300 mm/s, horizontal movement
■Power consumption: 1 W

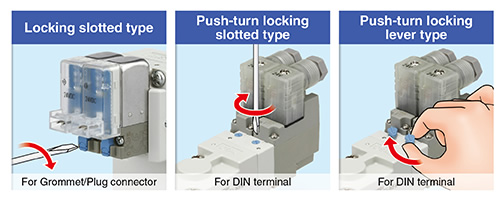

■3 Manual override options added

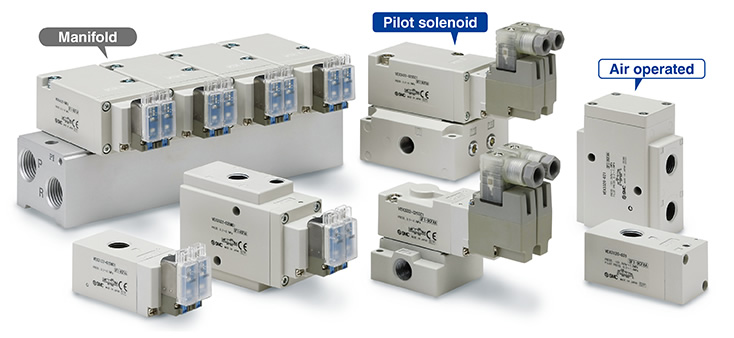

■Variations
■Applications
Vacuum suction and release
Intermediate cylinder stops
Terminal deceleration and an intermediate speed change circuit can be produced easily.
Universal porting could be used as a selector/divider valve.
For operation control of double acting cylinders
3 Port 3 Position Valve VEX3
- Product Code: VEX3 3 Port 3 Position Valve
- Availability: In Stock
-
-
